  • 1.  Roughness standards for thermal spraying

    TSS Board Vice President
    Posted 06-27-2022 20:54
    Dear Thermal Spray Community!

    I have often wondered if Ra is the best technique for measuring surface roughness related to the adherence of a coating to substrate. Roughness Ra is merely the average of peak-to-valley heights (i.e., the arithmetical mean height for roughness profile), but does not address tortuosity or what could be termed the "micro-asperities".

    Does anyone have suggestions for better techniques to characterize the roughness of surfaces for coating application?

    Cheers!

    ------------------------------
    Rogerio Lima, PhD
    Senior Research Officer
    National Research Council of Canada
    ASM Thermal Spray Society (TSS) Vice President
    ------------------------------
    Thermal Spray Accepted Practices - Order Today


  • 2.  RE: Roughness standards for thermal spraying

    Posted 06-28-2022 00:11

    Dear Rogerio,

    Thanks for the new discussion topic.

    So yes we've used basically digitally method using Mitutoyo make roughness measurement meter (SJ-210 model) with Ra & Rz scale using std measurements probe tip to check the surface roughness like after blasting, mechanical activation, after coating & grinding.

    Attached link fyi : https://www.google.com/search?q=sj+210+roughness+tester&tbm=isch&ved=2ahUKEwiAk6ibos_4AhXbn9gFHSXkBHsQ2-cCegQIABAC&oq=sj+210&gs_lcp=ChJtb2JpbGUtZ3dzLXdpei1pbWcQARgBMgUIABCABDIFCAAQgAQyBQgAEIAEMgYIABAeEAUyBggAEB4QBToECCMQJzoHCCMQ6gIQJzoECAAQQzoLCAAQgAQQsQMQgwE6CAgAEIAEELEDUOkWWPEjYNoxaAJwAHgAgAHxAYgBzguSAQUwLjEuNpgBAKABAbABBcABAQ&sclient=mobile-gws-wiz-img&ei=4326YsCVJNu_4t4PpciT2Ac&bih=640&biw=375&prmd=ivsn&rlz=1CDGOYI_enIN834IN834&hl=en-GB#imgrc=wxtA134yar-WQM

    Other old method I've used it in TSA coating applications for blasting surface roughness measurements is using thin standard film which would be apply over blasted clean surface then use plastic stick over the film to make the impression of rough area over the thin film.

    After that we put that roughen film in B/W dial gauge meter to get the reading of roughness.

    Attached link and pic for kind information:
    https://www.google.com/search?q=roughness+measurement+with+film+dial+gauge&tbm=isch&ved=2ahUKEwjnh7eQos_4AhVXMbcAHWy4CFEQ2-cCegQIABAC&oq=roughness+measurement+with+film+dial+gauge&gs_lcp=ChJtb2JpbGUtZ3dzLXdpei1pbWcQAzoECCMQJzoECB4QClDODljxSWCiTmgFcAB4AIABlQOIAcUikgEIMi0xNC4yLjGYAQCgAQHAAQE&sclient=mobile-gws-wiz-img&ei=zH26YufxLtfi3LUP7PCiiAU&bih=640&biw=375&prmd=ivsn&rlz=1CDGOYI_enIN834IN834&hl=en-GB#imgrc=dnF0BH5-QmQ_bM&imgdii=wLIsayGg-JY07M

    Thanks and Regards
    Chirag Raval



    ------------------------------
    Chirag Raval - M.Engg. in Met. & Mate. Engg.
    Thermal Spray Applications & Know How Technology Transfer
    chirag.ase@gmail.com
    ------------------------------

    Thermal Spray Accepted Practices - Order Today


  • 3.  RE: Roughness standards for thermal spraying

    Posted 06-28-2022 02:57
    Hi Rogerio,

    A great fundamental question, and one that is quite topical for myself, as I am working on trying to optimise the surface topography of TS coatings to promote the settlement of marine organisms.....varying grit size in blasting, size of TiO2 feedstock powder, number of deposition passes and post spray grit blasting.

    The challenge in this project, and, I suspect more generically for coating adhesion, is to characterise the 3D surface topography, not simply a linear 2D topography.  In my case I am trying to optimise the number of 3D bowl-type features of a certain size on the surface for a larvae to settle in.

    How to measure the roughness? In the past I have tried to use a noncontact surface profiler, but back then (about 5 years ago) the technique did not work very well with TS coatings due to the difference in reflectivity of the metallic part of the splats versus the oxide layers.....although I understand now that the technology has evolved to overcome this. I have instead used a 3D optical microscope which uses a z stepper stage to take images in the z, and then automatically filter out any details that are not in focus, before stitching the images together in 3D.  Works great over a very large range of magnification ranges and sample sizes of up to 100mm, which I have exploited for coating deposition profile charaterisation in 3D.

    The next challenge is how to "make sense" of this wealth of 3D information.  In looking at the literature on 3D  surface characterisation, versus 2D, there are a plethora, or some say a "rash" of different variables that have been proposed, often developed for niche applications.  While there are a lot of variables, I have still not found one that will suit my needs! The other challenge I am finding is how to intuitively relate the output of the characteriation, which is usually a single number, to the physical complexity of the surface, in such a way that you can understand what is happening at the surface when the characterisation variable changes in value, in order to relate that back to the core question to begin with.

    No easy answer, but a very fruitful area for future research!

    Best regards
    Steve Matthews

    Steven Matthews, PhD

    Department of Chemical and Materials Engineering
    The University of Auckland, Auckland, New Zealand
    Phone: +64 9 9236373 or +64 9 3737599 ext 86373

    Associate Investigator - "Surface Engineering for Advanced Materials"



    Thermal Spray Accepted Practices - Order Today


  • 4.  RE: Roughness standards for thermal spraying

    TSS Board Vice President
    Posted 06-28-2022 09:23
      |   view attached
    Dear Chirag and Steve,

    Thank you for your feedback. It is highly appreciated.

    Chirag... I did not know the method you mentioned to measure surface roughness, in which you apply a standard film over the grit-blasted area and press it with a rubbing tool to get the surface profile, and then use a gauge to measure the peak-to-valley roughness. It is quite interesting and I even found a video about it on the Youtube:  https://youtu.be/6sxPsDvqeUM

    Steve... I just try to imagine the challenges you are facing to characterize the surface roughness of thermal spray coatings to better understand the settlement of marine organisms. And I loved what you said; i.e., ho to attribute a very complex surface microstructure to a single number. You nailed it!

    By the way... I am attaching this figure showing surfaces with different morphologies, but with basically exhibiting the same Ra value. For sure a challenge.

    Thank you both again for your feedback.

    Cheers!

    ------------------------------
    Rogerio Lima, PhD
    Senior Research Officer
    National Research Council of Canada
    ASM Thermal Spray Society (TSS) Vice President
    ------------------------------

    Thermal Spray Accepted Practices - Order Today


  • 5.  RE: Roughness standards for thermal spraying

    Posted 06-28-2022 10:17
    Edited by Andre Liberati 06-28-2022 10:24

    Hi everyone,

    Thanks for the interesting question Rogerio, as well as for the answers Chirag and Steven ! You bring up an excellent point about surfaces with similar roughnesses Rogerio, I may have some insight for that.

    TL;DR : Sa, Sz, Sq, Sdq, Ssk and Sku are parameters that can be worth considering.

    During my PhD, I touched a bit on this trying to measure substrate differences when cold-spraying composites with tin - and given the ease of deformation of tin, it was a bit tricky finding parameters that would illustrate notable differences. I worked with a Zygo white light interferometry profilometer, and measured areal surface parameters (e.g. Sa instead of Ra) but the principles are the same, only applied in 1D instead of 2D. In the end, the parameters I retained were Sa and Sz (the "classics"), as well as Sq and Sdq.

    Sq is defined as the "root mean square roughness" and takes into the standard deviation (or error) of your "arithmetical mean roughness" Sa, therefore Sq gives better precision of the "overall roughness" while taking into account how much variation you may have from the average. A simple correlation between Sq and Sa can be viewed here.

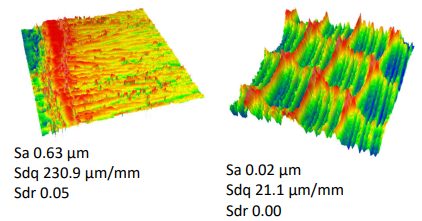

    Sdq is defined as the "root mean square gradient of the surface" and goes a step further than the previous parameters as it integrates the gradients (i.e. slopes) of the surface. As described in the Zygo Surface Texture Parameter booklet, Sdq is affected both by texture amplitude and spacing. Thus for a given Sa, a wider spaced texture may indicate a lower Sdq value than a surface with the same Sa but finer spaced features. An example illustrates this :
    Other parameters that can be very useful to consider are the kurtosis (Sku) - which indicates the presence of inordinately high peaks or deep valleys (Sku>3.00) or lack thereof (Sku<3.00) making up the surface - and the skewness (Ssk), which indicates the the degree of symmetry of the surface heights about the mean plane. The sign of Ssk indicates the predominance of peaks (Ssk>0) or valley structures (Ssk<0) comprising the surface (Zygo).

    So depending on the scope of your study, I believe these 6 parameters can help give a good assessment of a surface, but there are quite a few other options. While the Keyence site is a good reference for the parameter formulae, the Zygo Surface Texture Parameter booklet gives good explanations of what the parameters mean, so feel free to send me a message if you wish for me to share it with you.

    ------------------------------
    Andre Liberati
    Postdoctoral Fellow
    Concordia University
    Montréal QC
    (514) 813-8021
    andre.liberati@concordia.ca
    ------------------------------

    Thermal Spray Accepted Practices - Order Today


  • 6.  RE: Roughness standards for thermal spraying

    TSS Board Vice President
    Posted 06-28-2022 19:33
    Thanks Andre for the very detailed answer!

    As Steve was saying... it is a challenge to represent the complex characteristics with just a single number. And therefore, as you pointed out, a combo of roughness parameters (i.e., numbers) are most likely necessary to better characterize surface morphologies.

    By the way, as per the figure I shared in my previous message, where different surface asperities yield the similar Ra values, if we could have the real samples measured via a stylus profilometer, as well as, the white light interferometry profilometer... then we would see in a very didactic way the differences.

    Another comment. Steve highlighted the fact that he had problems regarding differences of reflectivity among different materials (e.g., metals versus ceramics). You worked with tin cold-sprayed coatings (i.e., a single metallic material). Do you think that you may have this reflectivity issue using white light interferometry if you have different phases on your coating surface? If "yes"… if you could coat the surface of the coating with a metallic thin film (e.g., sputtering) just like we do for SEM, would that solve the problem?

     Again… thanks for your detailed answer and contribution to the thread.

     Cheers!



    ------------------------------
    Rogerio Lima, PhD
    Senior Research Officer
    National Research Council of Canada
    ASM Thermal Spray Society (TSS) Vice President
    ------------------------------

    Thermal Spray Accepted Practices - Order Today


  • 7.  RE: Roughness standards for thermal spraying

    Posted 06-29-2022 17:06
    I would suggest that the property desired (coating bond, surface finish, wear resistance, or whatever) be measured and then compared by whatever proxy or actual test (pull off or any of the many measures and methods of surface roughness).  Then do your correlation against all of those methods and see what matches up best, like needs to be done with any nondestructive test.



    Thermal Spray Accepted Practices - Order Today


  • 8.  RE: Roughness standards for thermal spraying

    Posted 06-30-2022 09:10
    Step one is to thoroughly understand what surface characteristics your coating needs to perform best in its application.  That should help point you to one or more of the available measurement methods.

    You may find that, for direct comparisons on uncomplicated surfaces, a simple contact profilometer with stylus will work fine.

    See, for example,  https://www.keyence.com/ss/products/microscope/roughness/equipment/line_01.jsp

    ------------------------------
    Robert Miller
    Materials Engineering Consultant
    R. A. Miller Materials Engineering
    Indianapolis IN
    (317) 698-5479
    ------------------------------
